Blue Sea 7083 285-Series Circuit Breaker Panel Mount 50A Switch Marine
By Blue Sea
By Blue Sea
| Part # | 7083 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.5 lbs |
$50.82 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description

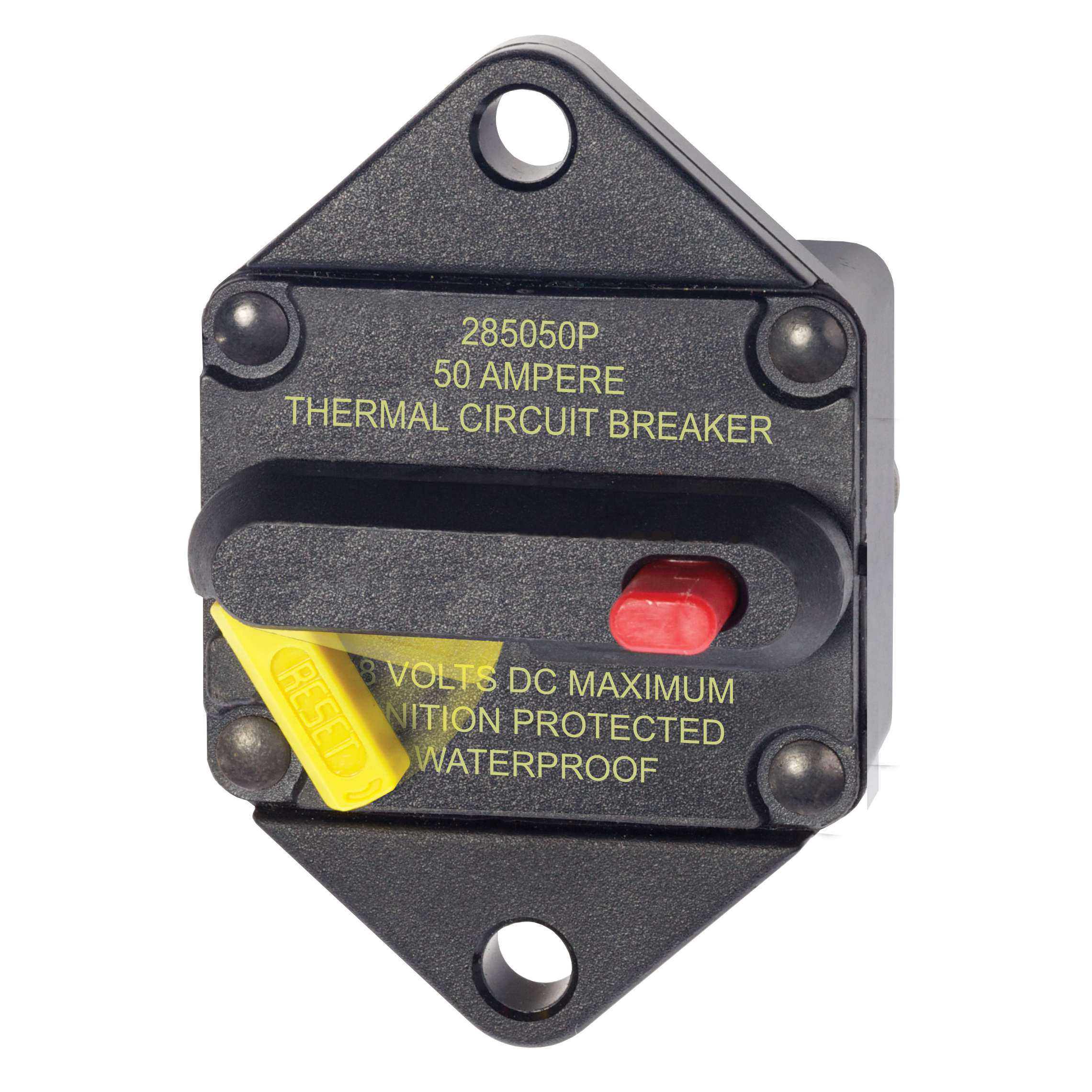

New Blue Sea Systems 285-Series Circuit Breaker - Panel Mount 50A. Part number 7083.
Features
Specifications
Features
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- "Trip Free" - cannot be held closed after trip
Specifications
- Amperage: 50A
- Maximum Voltage: 48V DC
- Mounting: Panel Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque: 50 in-lb (5.65 Nm)
- Interrupt Capacity: 3000A @ 48V
- Minimum Operating Temperature: -40 degree C
- Maximum Operating Temperature: 85 degree C
- Circuit Breaker Class: Type III - switchable/manual reset - trip free
- Terminal Stud: M6 (accepts 1/4" Ring Terminal)
- Weight: 0.50lb (0.23 kg)
$50.82 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
7 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.26 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 7083 |
| Model | Blue Sea 7083 |
| Part # | 7083 |
| Product Type | Circuit Breaker |
| Shipping Dims | 8" x 5" x 4" |
| Shipping Wt | 0.5 lbs |
| UPC | 632085070830 |
| Warranty | 5 Year |
