Blue Sea 7050 Push Button Reset Only Quick Connect Circuit Breaker 3 Amps Marine
By Blue Sea
By Blue Sea
| Part # | 7050 |
|---|---|
| Warranty | 5 Year |
| Made In | Taiwan |
| Shipping Wt | 0.2 lb |
$11.37 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description

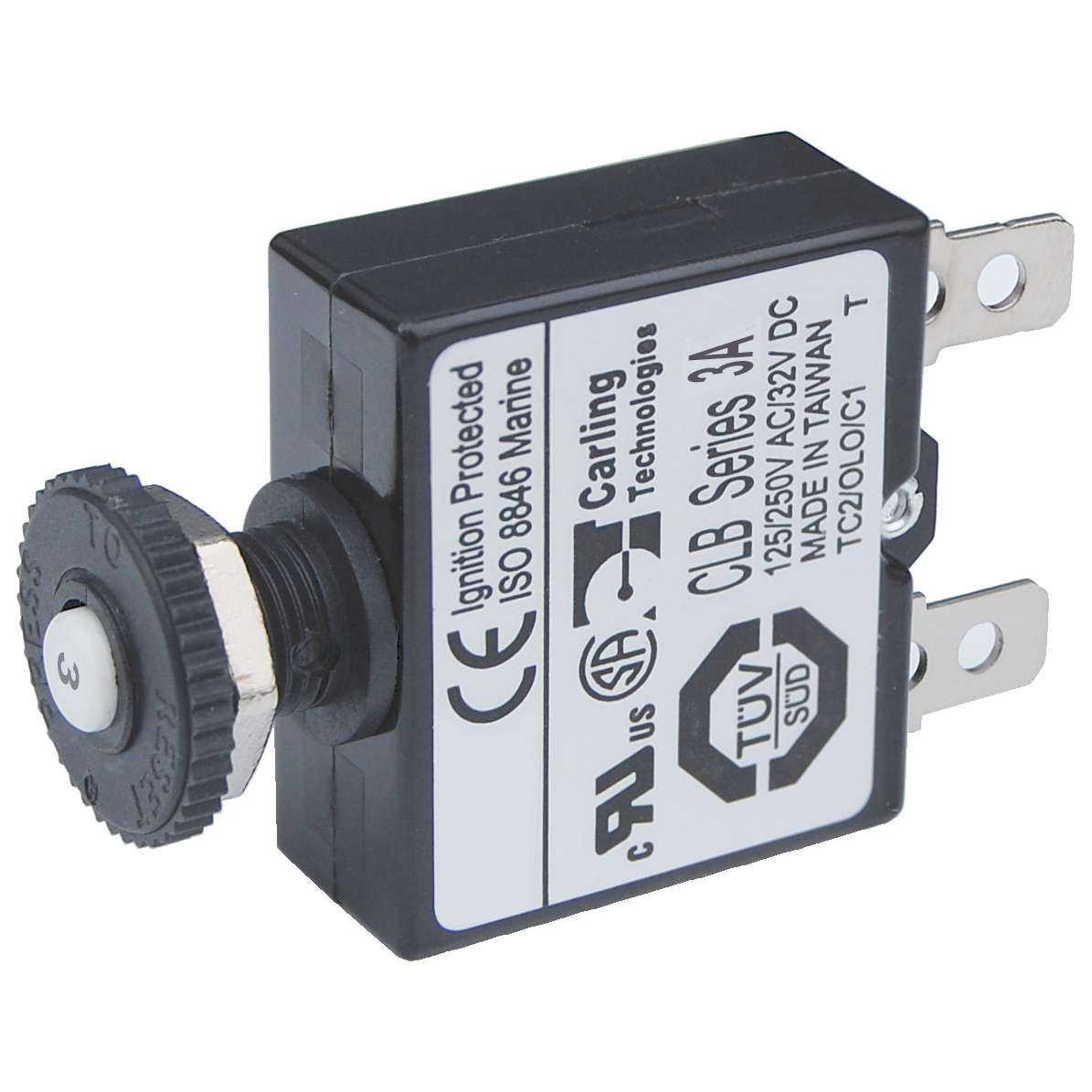

New Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breaker - 3 Amps. Part number 7050.
Features
Specifications
Features
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- Trip Free design cannot be held ON during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications
- Amperage: 3A
- Maximum Voltage: 32V DC
- Mounting: Panel Mount 3/8-27 UNS
- Circuit Breaker Type: Thermal trip, manual push-button reset only
- Terminal Type: 1/4 Male Quick Connect
- Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
- Minimum Operating Temperature: -10 degree C
- Maximum Operating Temperature: 60 degree C
- Screw Terminal Torque: 6 in-lb (0.68 Nm)
- Weight: 0.06lb (0.03 kg)
$11.37 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Taiwan |
| Item Weight | 0.08 lb |
| Manufacturer | Blue Sea Systems |
| Model | Blue Sea 7050 |
| Part # | 7050 |
| Product Type | Circuit Breaker |
| Shipping Dims | 6" x 4" x 3" |
| Shipping Wt | 0.2 lb |
| UPC | 632085070502 |
| Warranty | 5 Year |
