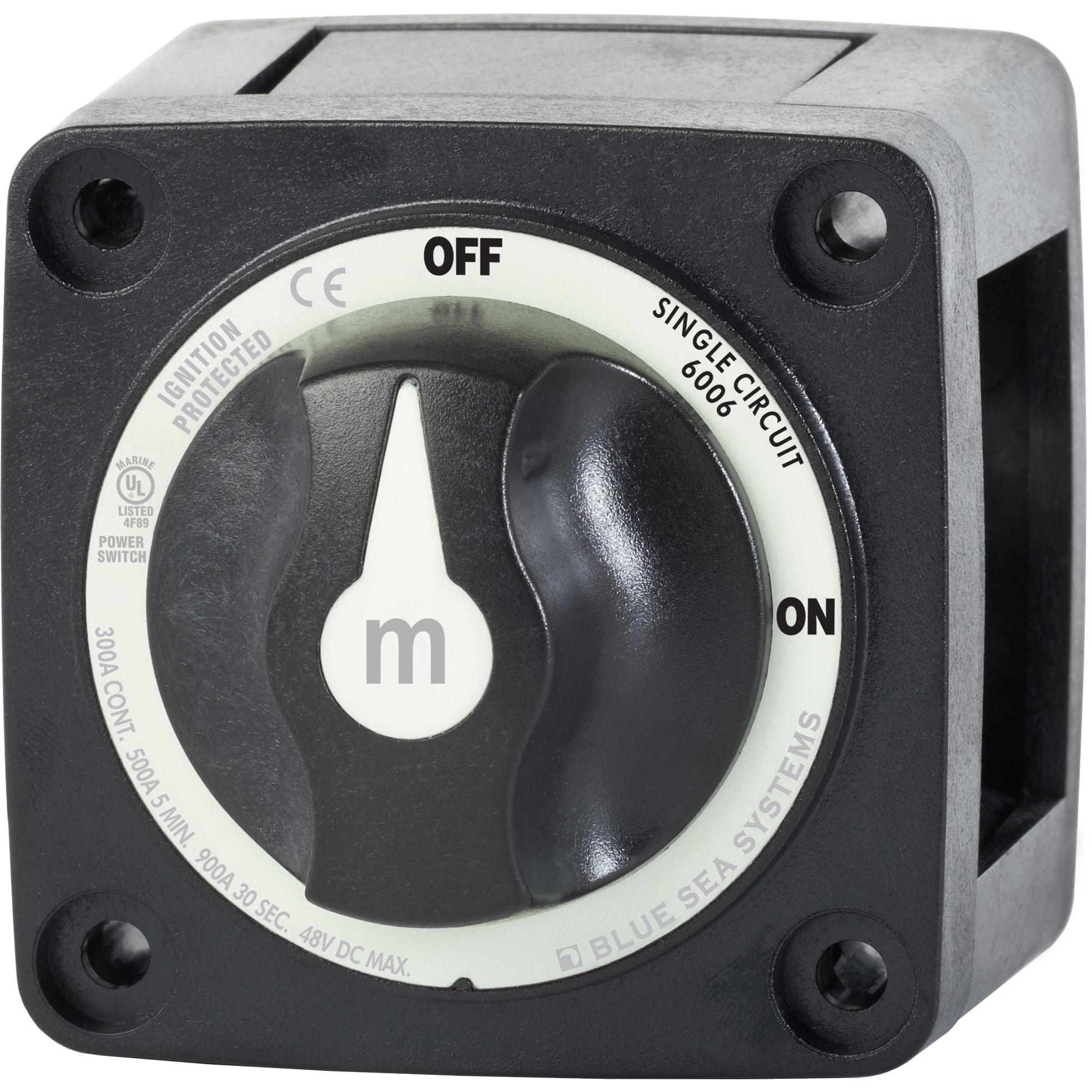

Blue Sea 6006200 m-Series Mini On-Off Battery Switch with Knob, Black
By Blue Sea
By Blue Sea
| Part # | 6006200 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.8 lbs |
$31.67 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems M-Series mini on/off battery switch with knob. Black in color. Part number 6006200. Switches a single battery to a single load group.
Features
Specifications
Features
- Ignition protected, safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
Specifications
- Switch Type: Single Circuit ON-OFF
- Color: Black
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 48V DC
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Continuous Rating: 300A
- Intermittent Rating: 500A (5 min)
- Cranking Rating 10 sec: 1500A
- Cranking Rating 1 min: 775A
- Battery Inputs: 1
- Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
- Mounting Holes: Accept #10 Screw
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 0.65lb (0.29 kg)
$31.67 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
20+ in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Color | Black |
| Made In | Mexico |
| Item Weight | 0.66 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 6006200 |
| Model | Blue Sea 6006200 |
| Part # | 6006200 |
| Product Type | Battery Switch |
| Shipping Dims | 6" x 4" x 4" |
| Shipping Wt | 0.8 lbs |
| UPC | 632085600624 |
| Warranty | 5 Year |
