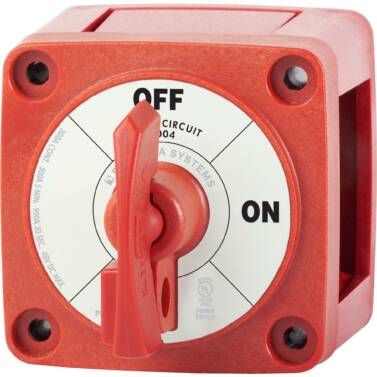

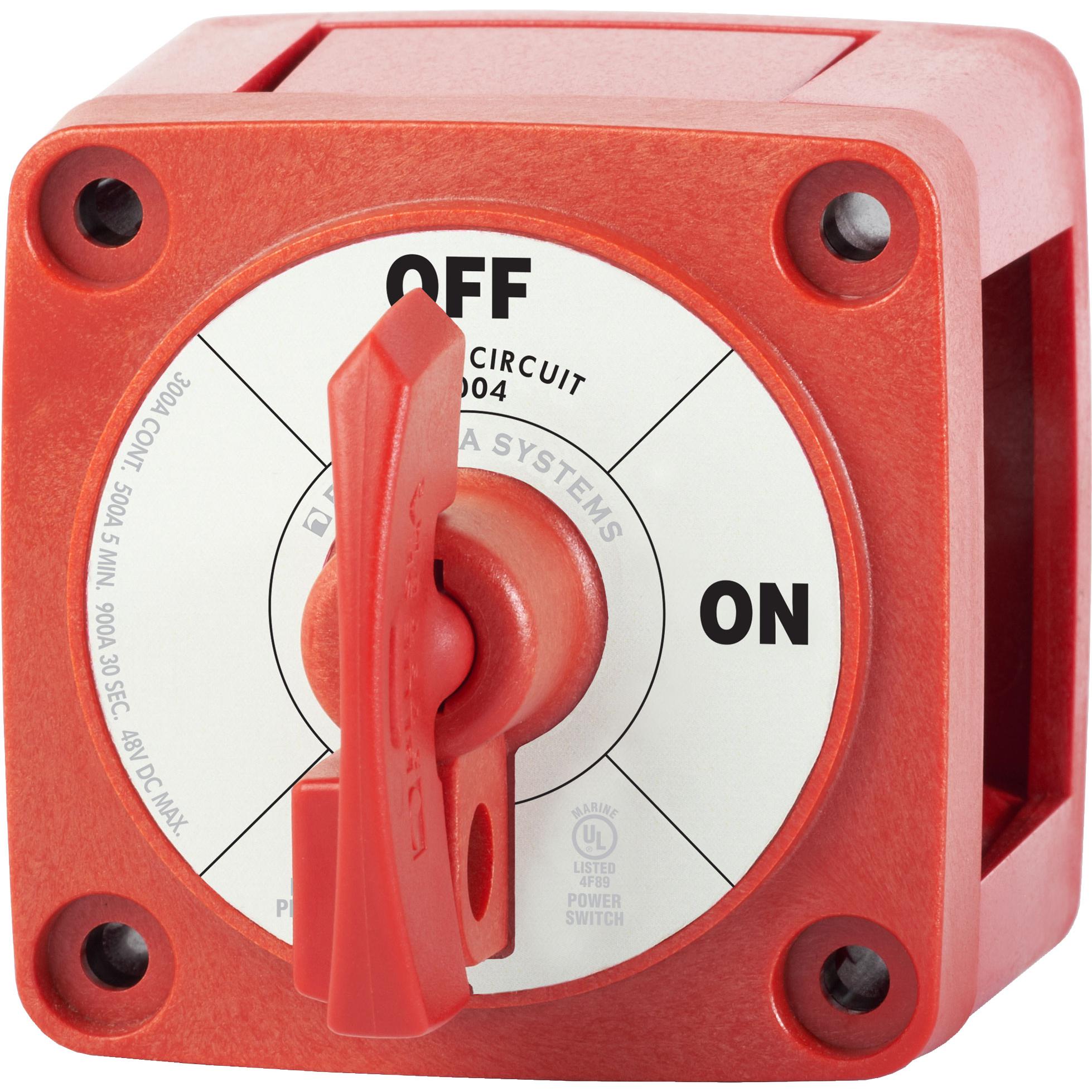

Blue Sea 6004 Marine Single Circuit ON-OFF with Locking Key - Red

Overview
300 Amps continuous rating for outboards and small gasoline or diesel engines.

Features

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• One-piece stainless flange nuts ensure safe and secure connections
• Isolating cover protects rear contacts
• Breakout tabs allow wire access in any direction

Specifications

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Maximum Voltage: 48V DC
• Stud Size: 3/8"
• Continuous Rating: 300A
• Intermittent Rating: 500A
• Cranking Rating 30 sec: 900A
• Stud Material: Tinned Copper
• Stud Torque: 120 in-lb (13.56 Nm)
• Weight: 0.65lb (0.29 kg)
