Blue Sea 5510e Marine e-Series Dual Circuit Battery Switch
By Blue Sea
Part #5510e
Warranty5 Year
Made InMexico
Shipping Wt2 lbs

$61.18 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock
Pay in 4 interest-free payments with

Product Description

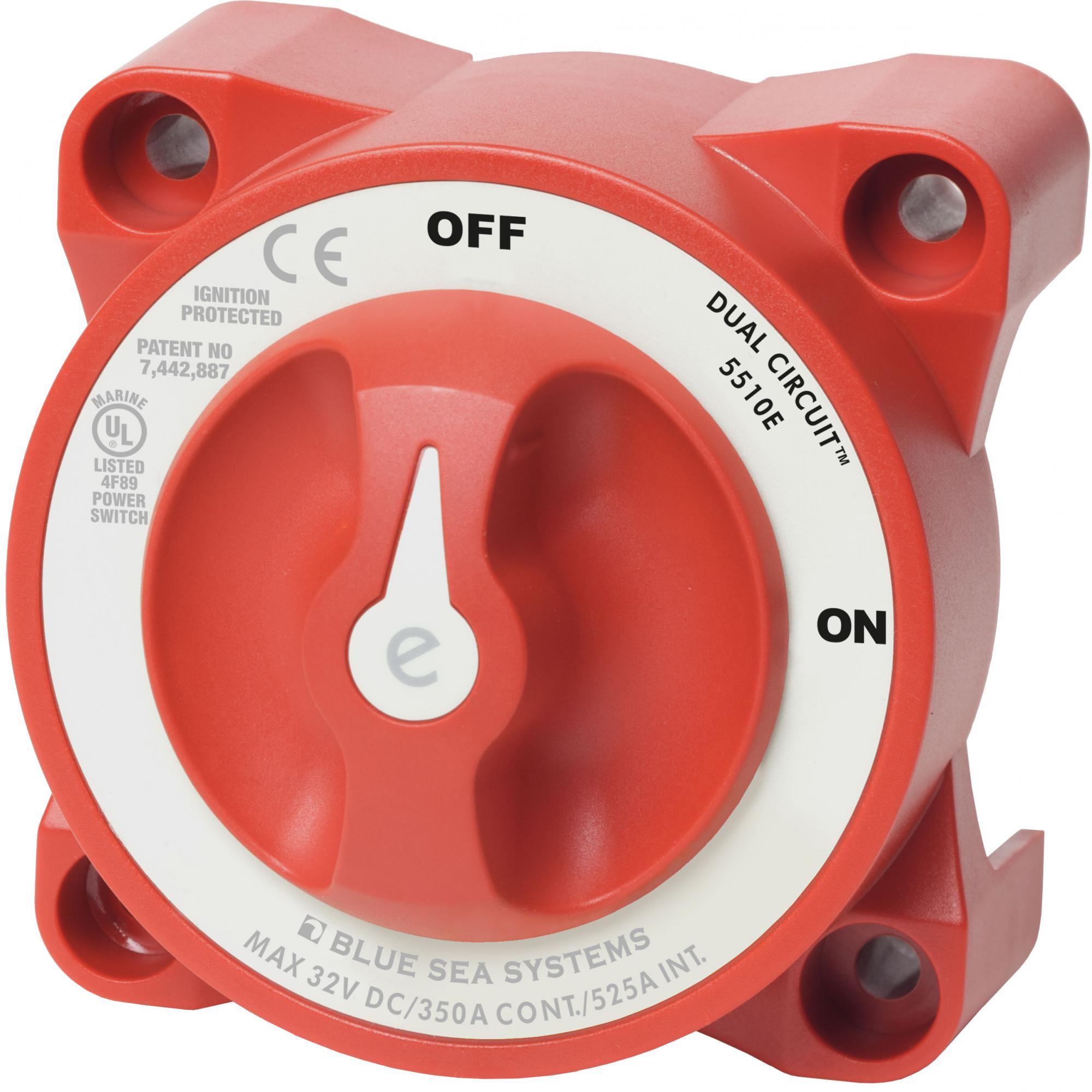

Blue Sea 5510e Marine e-Series Dual Circuit Battery Switch

Overview
Simultaneously switches two isolated battery banks.

Features
  • Ignition protected-safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

Specifications
  • Switch Type: Dual Circuit
  • Color: Red
  • Switch Positions: 2
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 350A
  • Intermittent Rating: 525A (5 min)
  • Cranking Rating 30 sec: 700A per circuit
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm²)
  • Mounting Holes: Accept 1/4" (M6) Screw
  • Stud Material: Tinned Copper
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.16lb (0.53 kg)
  • Weight: 1.30lb (0.59 kg)
Share this product:
PinterestTwitterFacebook

$61.18 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
2 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandBlue Sea
Made InMexico
Item Weight1.3 lbs
ManufacturerBlue Sea Systems
Manufacturer #5510e
Part #5510e
Product Typee-Series Battery Switch
Shipping Dims10" x 7" x 3"
Shipping Wt2 lbs
UPC632085551056
Warranty5 Year
