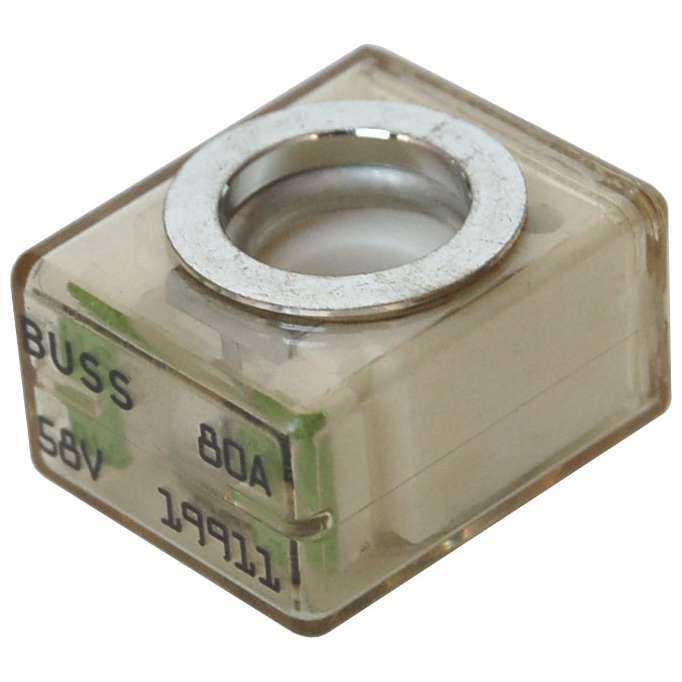

Blue Sea 5181 MRBF Terminal Fuse 80 Amp Marine 12V 24V 58V DC Boat Circuit 80A
By Blue Sea
By Blue Sea
| Part # | 5181 |
|---|---|
| Warranty | 5 Year |
| Made In | Taiwan |
| Shipping Wt | 0.2 lb |
$19.63 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
New Blue Sea Systems MRBF Terminal Fuse - 80A. Part number 5181. Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151.
Features
Specifications
Features
- Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151, do not mount the fuse directly to the battery terminal
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected-safe for installation aboard gasoline powered boats
- Clear window-visual indication of blown condition
- Color coded for each amperage
Specifications
- Amperage: 80A
- Maximum Voltage: 58V DC
- Interrupt Capacity: 10000A @ 14V DC, 5000A @ 32V DC, 2000A @ 58V DC
- Weight: 0.06lb (0.03 kg)
$19.63 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Taiwan |
| Item Weight | 0.04 lb |
| Manufacturer | Blue Sea Systems |
| Model | Blue Sea 5181 |
| Part # | 5181 |
| Product Type | MRBF Fuse |
| Shipping Dims | 6" x 4" x 3" |
| Shipping Wt | 0.2 lb |
| Size | 80A |
| UPC | 632085051815 |
| Warranty | 5 Year |
