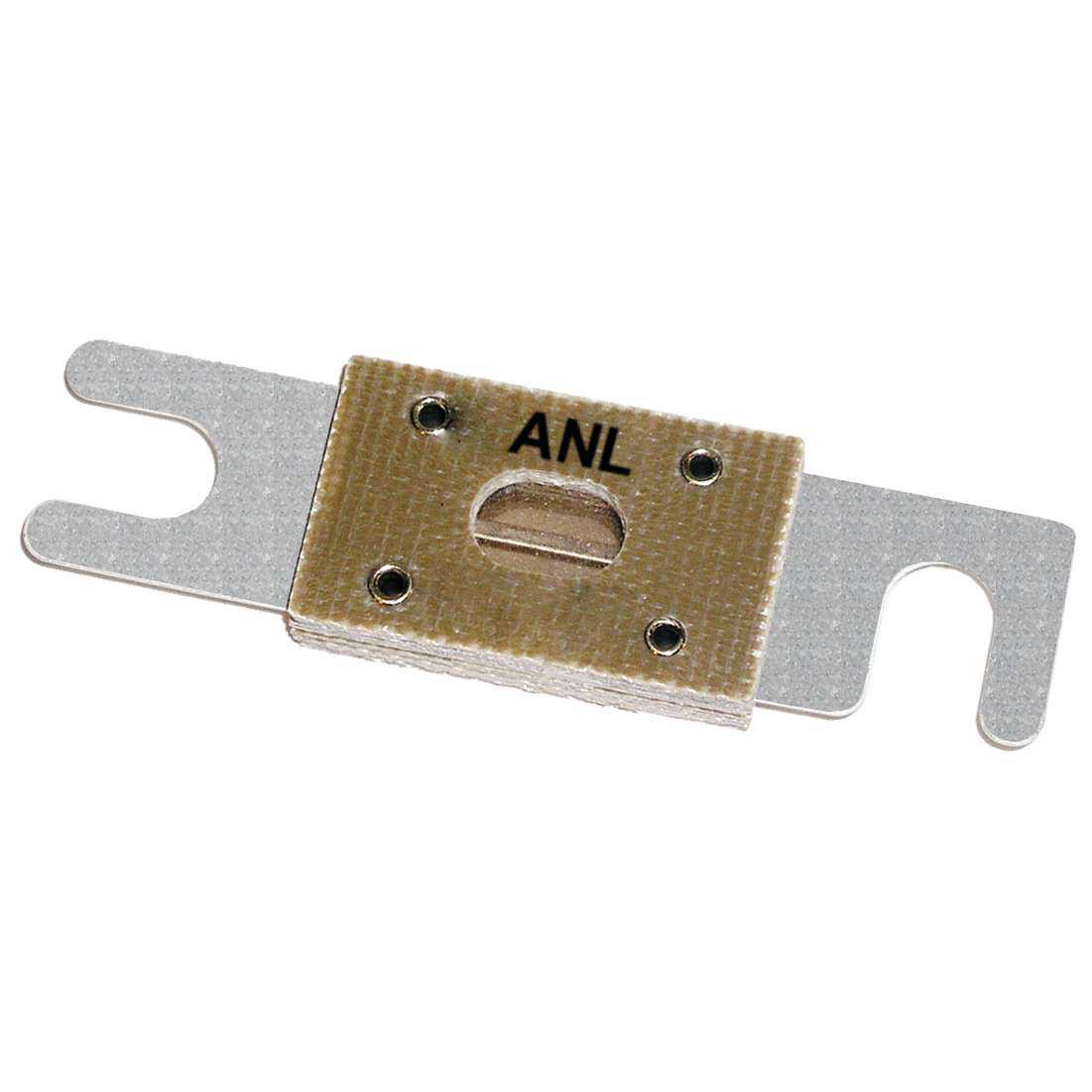

Blue Sea 5126 ANL Fuse 130 Amp Marine 12V 24V 32V DC Boat Circuit 130A
By Blue Sea
By Blue Sea
| Part # | 5126 |
|---|---|
| Warranty | 5 Year |
| Made In | Mexico |
| Shipping Wt | 0.2 lb |
$27.74 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Description
New Blue Sea Systems ANL Fuse - 130 Amp. Part number 5126.
Features
Specifications
Features
- Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
- Silver-plated connector blades for corrosion resistance
- Visible indication of blown condition
- 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
- For use with Blue Sea Systems' ANL Fuse Blocks
Specifications
- Amperage: 130A
- Ignition Protected: Yes
- Maximum Voltage: 32V DC
- Interrupt Capacity: 6000A @ 32V DC
- Weight: 0.08lb (0.04 kg)
$27.74 US
Free Shipping to the Lower 48 US States
(See all shipping options in cart)
18 in stock(See all shipping options in cart)
Pay in 4 interest-free payments with
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | Mexico |
| Item Weight | 0.04 lb |
| Manufacturer | Blue Sea Systems |
| Model | Blue Sea 5126 |
| Part # | 5126 |
| Product Type | ANL Fuse |
| Shipping Dims | 6" x 4" x 3" |
| Shipping Wt | 0.2 lb |
| Size | 130A |
| UPC | 632085051266 |
| Warranty | 5 Year |
