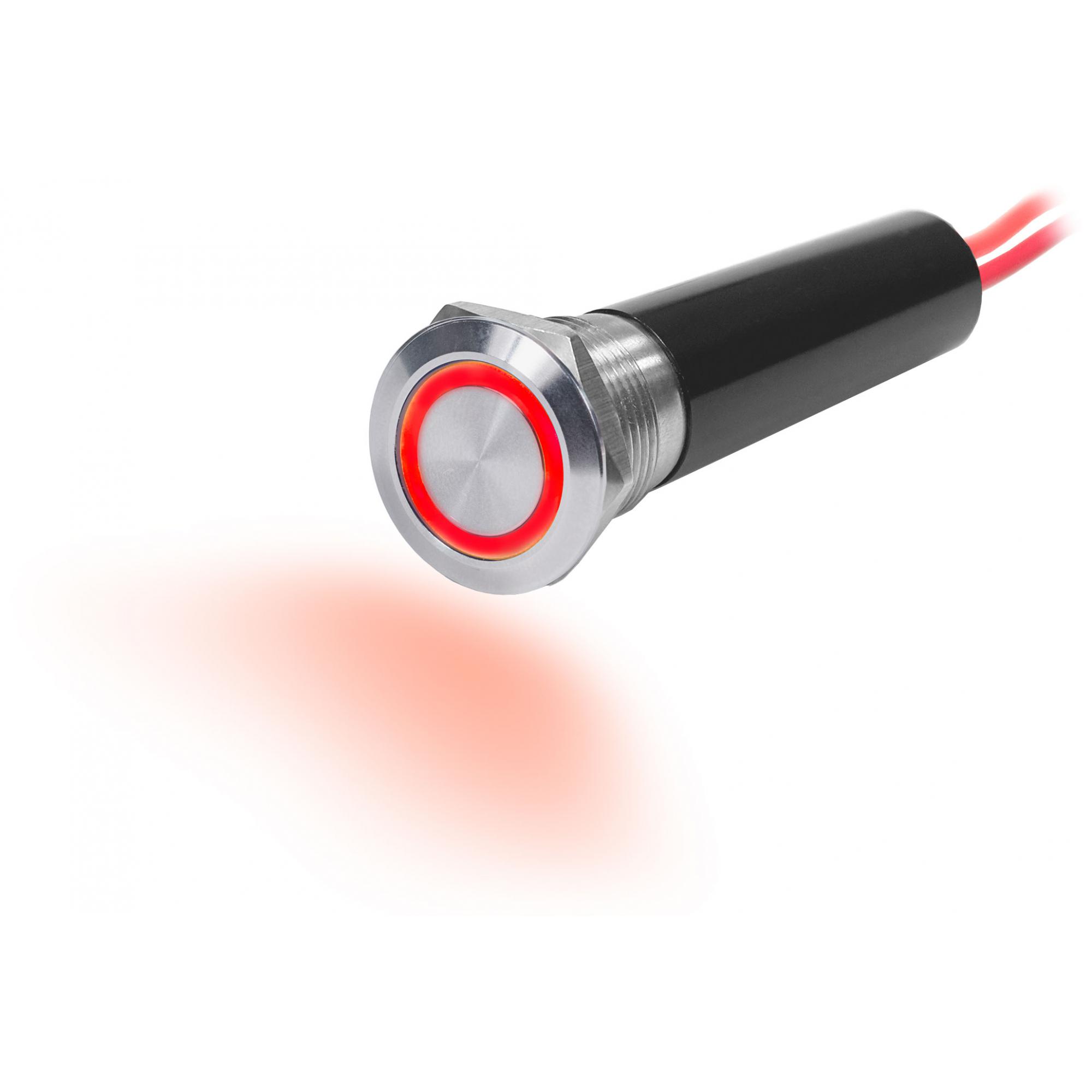

Blue Sea 4192 Marine 20A Push Button LED Ring Switch OFF-ON Red
By Blue Sea
By Blue Sea
| Part # | 4192 |
|---|---|
| Warranty | 5 Year |
| Shipping Wt | 0.7 lbs |
$53.06 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Description
Blue Sea 4192 Marine 20A Push Button LED Ring Switch OFF-ON Red
Features
Specifications
Features
- 20A Continuous
- Single Pole Single Throw
- Available in Blue & Red
- Available in momentary and non-momentary
- 14 AWG pigtail - positive & load connections
- .187inch quick connect - LED ground (included in retail package)
Specifications
- Action: OFF-ON
- Amperage: 20A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -30 degree C
- Maximum Operating Temperature: 80 degree C
- Illumination: Dependent - Illuminates when output is on
- Max Panel Thickness: 0.24in (6.1 mm)
- Mounting Hole: -3/4 " (19mm)
- Switching Cycles: 60,000
- Termination: 2 - 6 inch flying leads 14 AWG, 1 - 0.187 inch Quick Connect terminal
- Weight: 0.40lb (0.18 kg)
$53.06 US
Free Shipping to the Lower 48 US States
Out of stockNotify when in stock
Product Specifics
| Brand | Blue Sea |
|---|---|
| Made In | China |
| Item Weight | 0.4 lbs |
| Manufacturer | Blue Sea Systems |
| Manufacturer # | 4192 |
| Part # | 4192 |
| Product Type | Push Button Switch |
| Shipping Dims | 10" x 7" x 2" |
| Shipping Wt | 0.7 lbs |
| UPC | 632085041922 |
| Warranty | 5 Year |
