Marinco AFI 34000 12V MRV Marine Wiper Motor 2.5" Shaft 80 Degree 2-Speed
By Marinco
Part #34000
Warranty3 Year
Shipping Wt4 lbs

$171.32 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
8 in stock
Pay in 4 interest-free payments with

Product Description

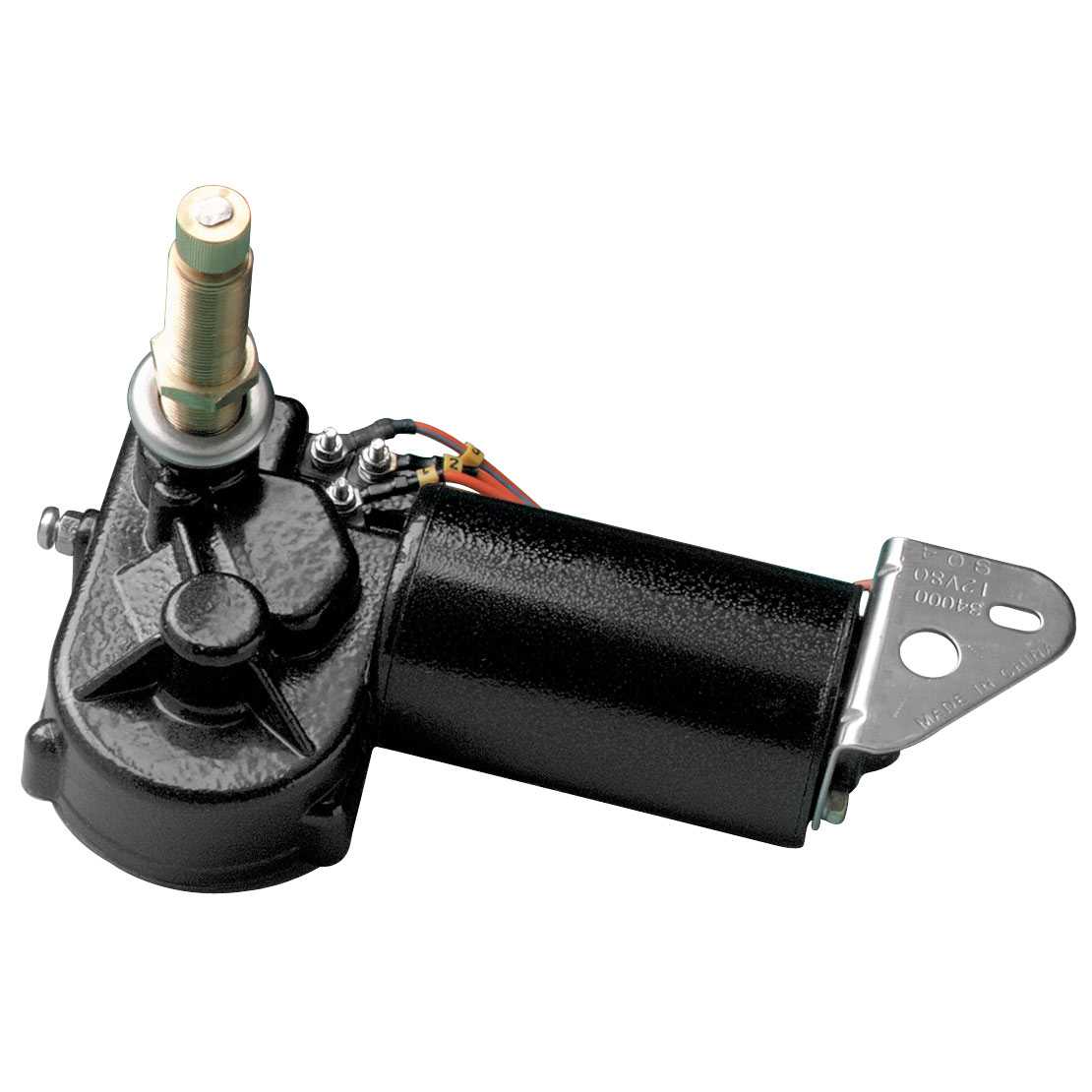

New Marinco AFI marine MRV wiper motor with 2.5" shaft and 80 degree sweep. Part number 34000. Runs on 12V DC. The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.

Features
  • Factory pre-set sweep of 80 degrees, adjustable to 45, 60, or 80 degrees
  • 5/8" (0.625") diameter shaft (16 mm)
  • Shaft length of 2.5"
  • Corrosion-resistant casing
  • Heavy-duty motor with right angle drive
  • Two-speed motor, can be operated as one speed
  • Solid brass knurled drive nut with brass and stainless steel drive shaft
  • Adjustable right or left self parking, coast to park
  • Includes 5 amp fuse and holder
  • Stainless steel fasteners and mounting bracket
  • Use with three-position switch (not included)
  • Compact size - 7.625" L x 4" W x 2" D
  • Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
  • Stall current: 11.5 to 13.0 amps
  • No load current: 0.5 to 1.2 amps
Share this product:
PinterestTwitterFacebook

$171.32 US

Free Shipping to the Lower 48 US States
(See all shipping options in cart)
8 in stock
Pay in 4 interest-free payments with

Product Specifics

BrandMarinco
Made InChina
Item Weight3.7 lbs
ManufacturerMarinco/AFI
Manufacturer #34000
Part #34000
Product TypeBoat Wiper Motor
Shipping Dims10" x 8" x 6"
Shipping Wt4 lbs
UPC035028340005
Warranty3 Year
